3108 - TPK-03 Immersion Probe K-type Thermocouple (-50 to +700°C)
Tutti i prezzi sono IVA inclusa
The 3108 - K-Type thermocouple can take continuous temperature readings between -50°C to +800°C with a ±0.75°C accuracy. The 3108 can also take a instant, single temperature reading between -100°C to +900°C.
It is mostly used to take the temperature of liquids and gels.

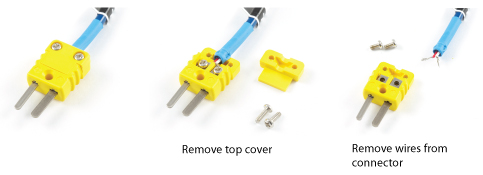

The Thermocouple comes with a standard miniature male connector that can be removed to uncover the stripped wires when connecting it to one of the following Phidget temperature sensor:
- 1051 - PhidgetTemperatureSensor 1-Input.
- 1048 - PhidgetTemperatureSensor 4-Input.
On the 1051, connect the white thermocouple wire to (-) terminal block and the red wire to the + terminal block.
On the 1048, connect the white wire to G and the red wire to an input terminal block (numbered 0 to 3).
You could also connect the 3108 to a Phidget Temperature Sensor using a 3106 – Thermocouple Adapter.
For more information on thermocouples, visit the Thermocouple Primer.
Product Features
- Can take continuous temperature readings between -50°C to +800°C
- Can take a single temperature reading between -100°C to +900°C
- Wire length: 70cm extendable to 170cm
- Removable Miniature Male Connector
Sensor Properties
| Sensor Type | Thermocouple |
Temperature Sensor
| Thermocouple Type | K |
| Probe Type | Immersion |
| Ambient Temperature Min | -50 °C |
| Ambient Temperature Max | 800 °C |
| Ambient Temperature Min (Momentary) | -1E+02 °C |
| Ambient Temperature Max (Momentary) | 900 °C |
| Ambient Temperature Error Max | ± 0.75 °C |
Physical Properties
| Connector Type | Miniature Male Connector |
| Cable Length | 0.7 m, extends to 1.7 m |
| Cable Gauge | 28 AWG |
| Insulation Material | PE Plastic |
| Probe Material | K/316 Stainless Steel |
| Handle Material | Engineering Plastic |
