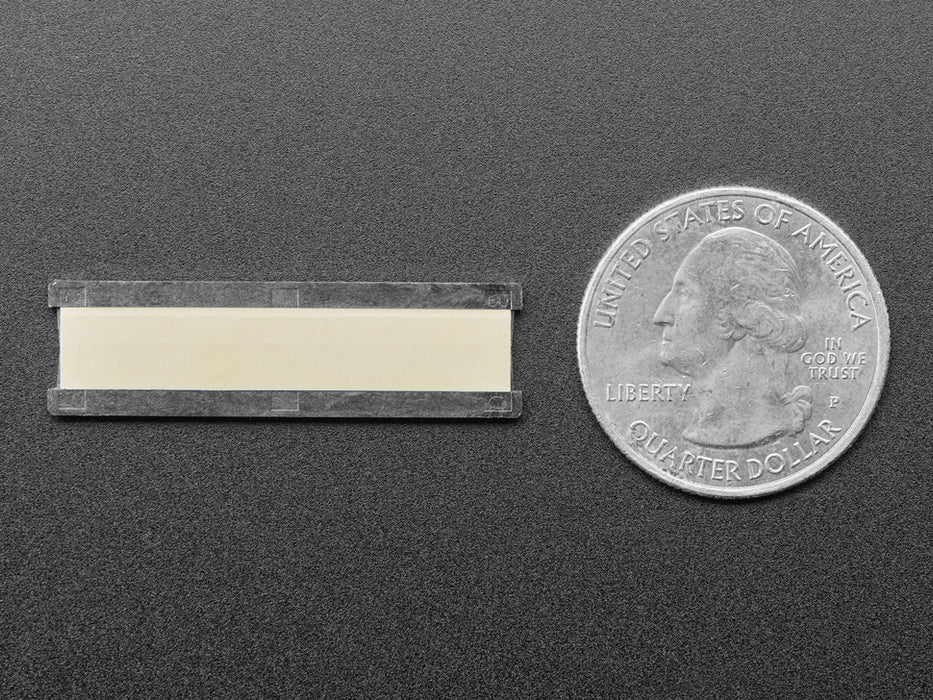

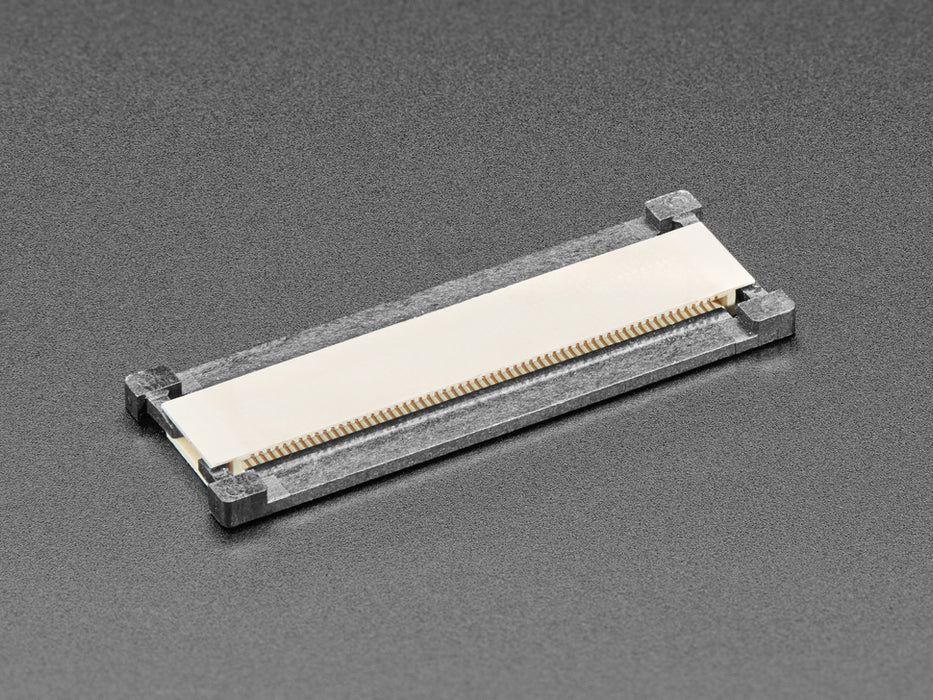

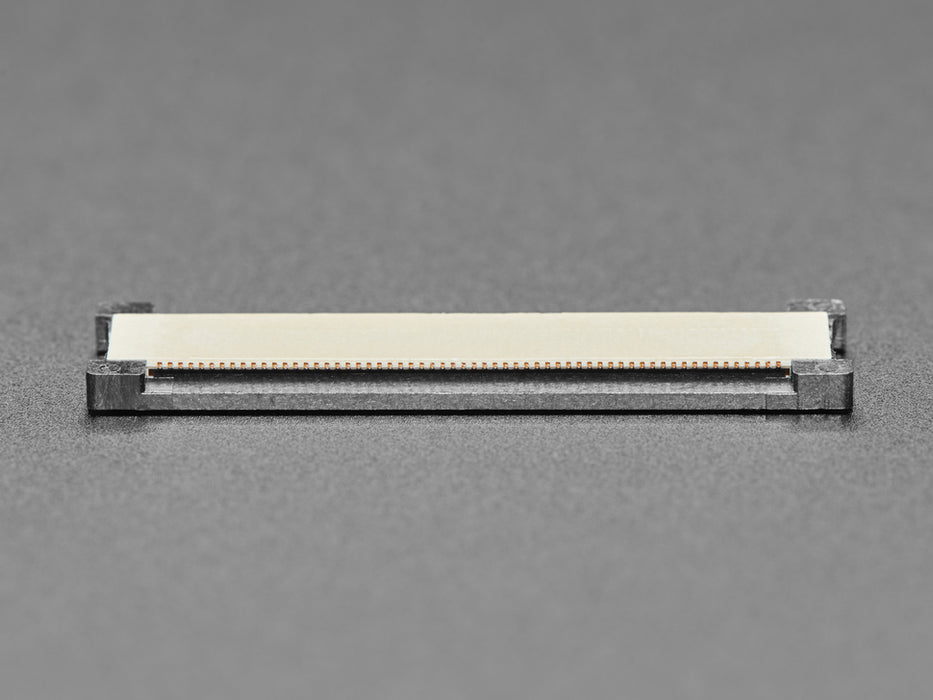

60-pin 0.5mm FFC / FPC Extender

This 60-pin FFC / FPC Extender is very simple. It lets you connect two 60-pin 0.5mm pitch FFC (Flexible Flat Cable) / FPC (Flexible Printed Circuit) cables end-to-end and extend the length. For use with 0.3mm thick FPC cables.

Note that pin 1 of one cable is connected to pin 60 of the other so you need to use a cable that has contacts on the same side (type A-A cable)

Carefully pry the two ears of the connectors, plug the cables with contacts pointing up, and then push the ears back in for a solid connection.

We also carry an assortment of extender options, like this 50-pin 0.5mm version, 30-pin 0.5mm, 24-pin 0.5mm, and 20-pin 0.5mm version.
